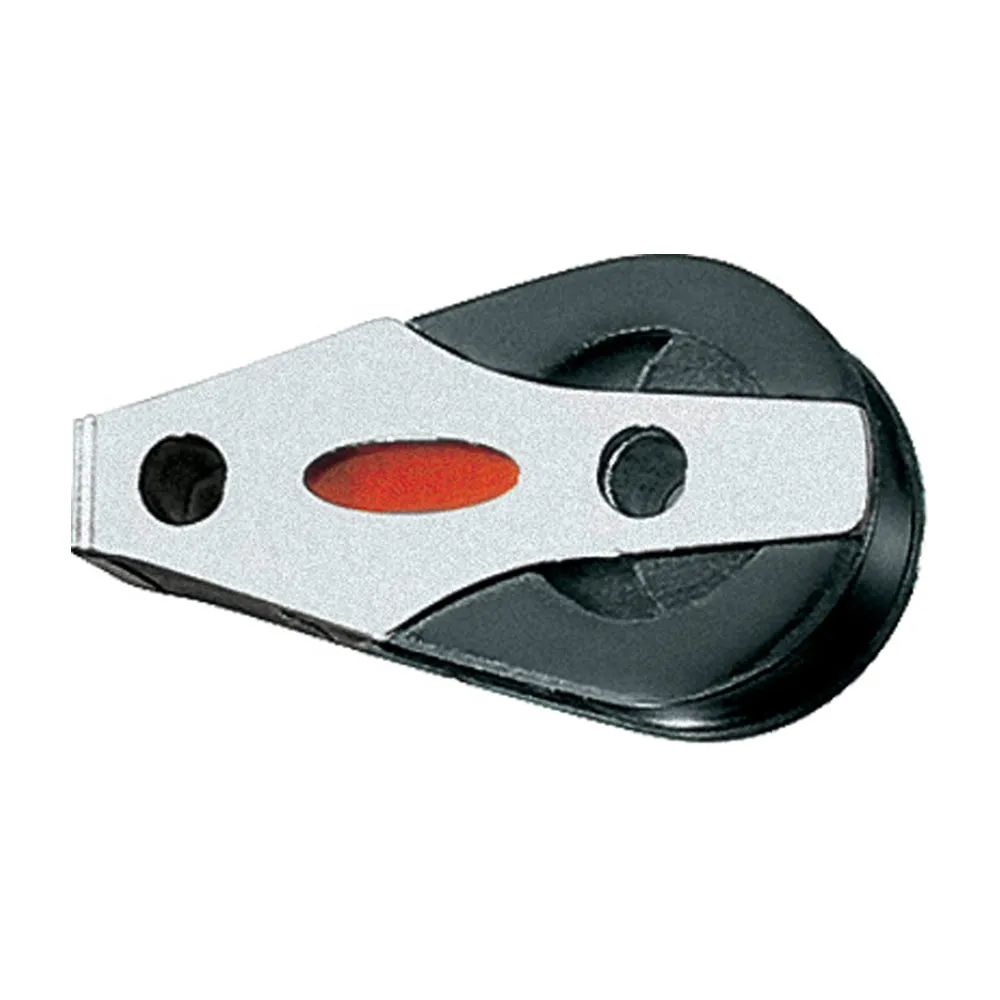

Series 20 Ball Bearing Block - Single - Cheek

Features:

• Low friction




• High static and dynamic load capacity




• Lightweight




• Double through-bolt mounting for maximum load capacity




• Precision molded Acetal sheaves running on stainless steel or Torlon® ball bearings provide high performance & low friction

Applications:

• Dinghy control lines




• Dinghy Vangs




• Cunninghams




• Traveller controls

Materials:

• U.V. Stabilized Acetal sheaves




• Stainless steel ball bearings




• Grade 316 stainless steel load strap and head fitting




• Impact and UV resistant, fiber reinforced Nylon cheeks

Specifications:
Sheave Ø: 20mm(3/4")
Max. Rope Ø: 6mm(1/4")
M.W.L.: 250kg(550lbs)
B. L.: 550kg(1,210lbs)
Weight: 14g(0.5oz)
